BOX DESAL SWRO · FACTORY-INTEGRATED SEAWATER RO
SWRO200
200m³/day
A source-confirmed containerized platform with model-specific feed, membrane, pressure-vessel, high-pressure, energy-recovery, filtration and CIP references.
DELIVERY FORMAT1 × 40 ft

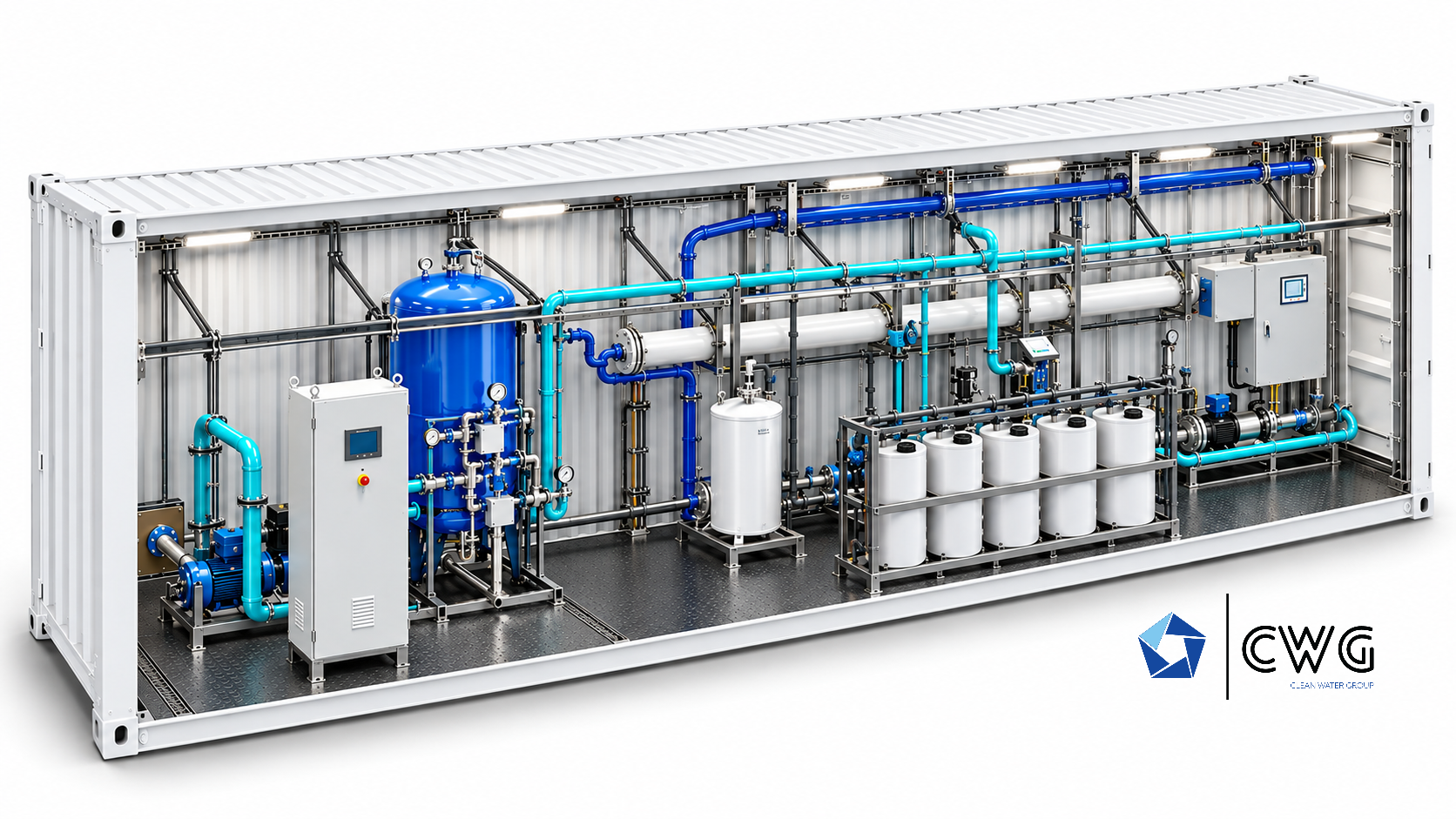

BOX DESAL SWRO 200100–400 FAMILY ILLUSTRATION · MODEL PHOTO PENDING
REFERENCE PRODUCT8.33m³/h12 membranes12–18 weeks
200m³/dayNOMINAL PRODUCT WATER
500m³/dayREFERENCE FEED FLOW
12× 8 × 40SWRO MEMBRANES
2 × 1,200 psiPRESSURE VESSELS
40% nominalREFERENCE RECOVERY
MODEL-SPECIFIC REFERENCE DATA
Confirmed equipment basis for concept development.
These values belong specifically to BOX DESAL SWRO 200. They support preliminary comparison; the final equipment schedule is released only after the water and project duty are approved.
Start engineering reviewREFERENCE PLANT SCOPE
Integrated treatment inside the delivery boundary.
The model platform combines the main process sections required for a maintainable containerized seawater plant.
Request detailed scopeFeed & filtration
Duty/standby feed pumping, multimedia filtration and cartridge filtration.
Chemical conditioning
SMBS and antiscalant dosing with tank, level and control references.
High-pressure SWRO
12 membranes in 2 pressure vessels with a 8.3 m³/h at 60–64 bar HP section.
Energy recovery
Reference operating point: 12.45 m³/h at 58–62 bar.
CIP & automation
10 m³/h · 500 L CIP reference with PLC/HMI, instruments, alarms and flushing logic.
Container services
Interior lining, air conditioning, internal piping, cabling and equipment access.
DOCUMENTATION STATUS

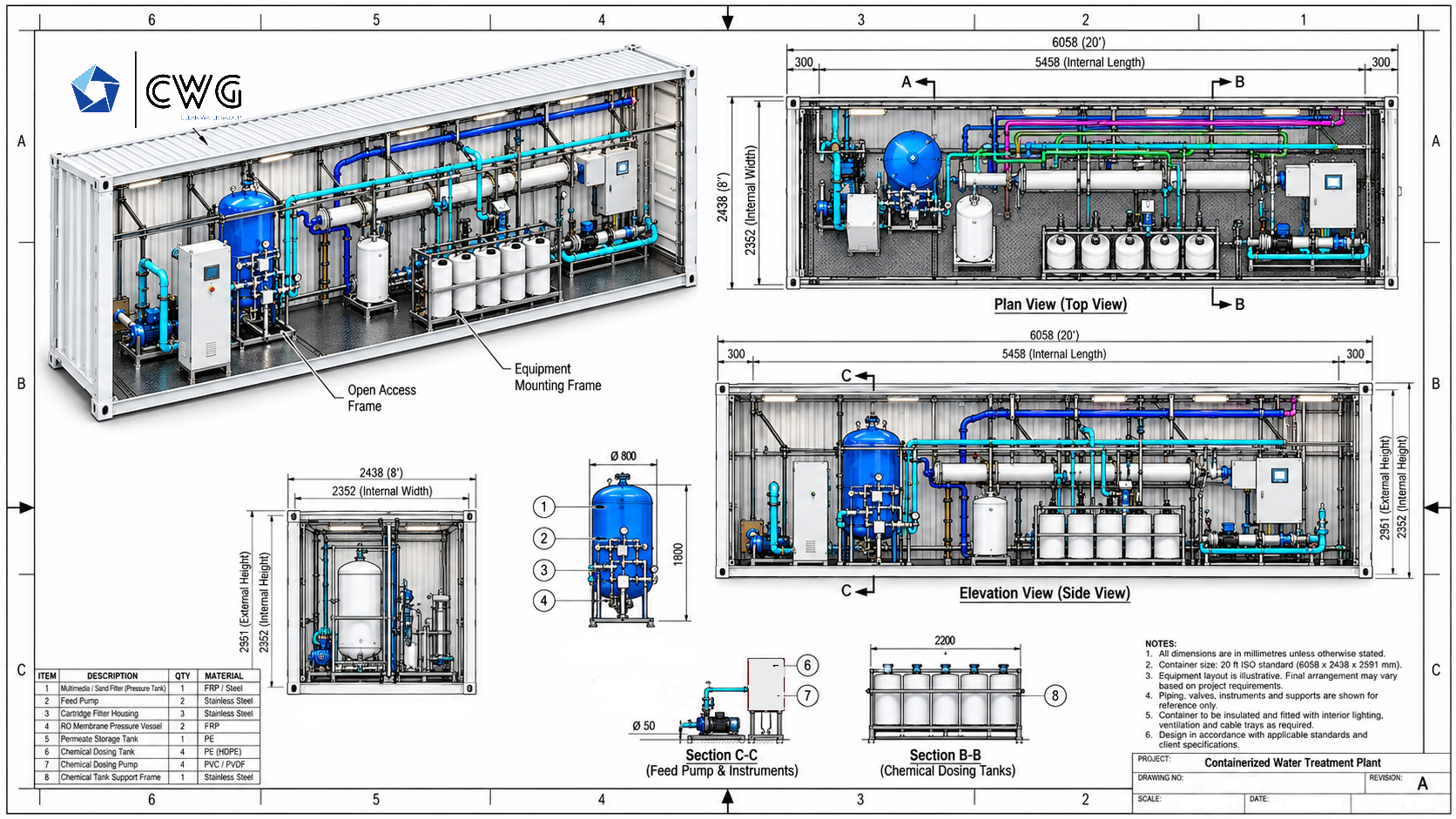

100–400 family reference drawing
The supplied drawing depicts a shared 20-foot container concept with outer dimensions of 6,058 × 2,438 × 2,591 mm. The product reference lists a 40-foot delivery arrangement, so the drawing does not establish this model’s final container size or layout. Its equipment arrangement may change for each capacity. A verified model photo, approved model-specific GA, P&ID, foundation, electrical and connection drawings remain required before design freeze.
CONTAINER ARCHITECTURE
1 × 40-foot reference arrangement
The process is referenced inside one container. Equipment access, clear service routes and maintainability must be verified before the manufacturing layout is frozen.
DELIVERY1 × 40 ftMULTIMEDIA FILTRATION1 × 48 × 72 FRPCIP SYSTEM10 m³/h · 500 LCONTAINER SERVICESInterior lining · air conditioning · internal utilities
ENGINEERING & COMMERCIAL BOUNDARY
Reference platform, not an automatic guarantee.
Actual seawater, temperature, intake, final-water duty and site conditions govern the approved plant. The approved net equipment price is shown above. Transport, site work and final technical scope are confirmed in the project proposal.
Current full seawater analysisSeasonal temperature and intake conditionsGuaranteed capacity and membrane projectionRecovery, pressure and energy consumptionExact wetted-material gradesEnergy-recovery technology and efficiencyBattery limits and external interfacesFinal CWG commercial proposal
BOX DESAL SWRO 200 FAQ
Answers before project configuration.
01What is the reference capacity of BOX DESAL SWRO 200?
The reference platform is rated at 200 m³/day or 8.33 m³/h. Guaranteed production requires the actual seawater analysis, temperature and an approved membrane projection.
02How is BOX DESAL SWRO 200 containerized?
The reference delivery uses 1 × 40-foot container. Final access, segregation, ventilation, drainage and external battery limits are verified before layout approval.
03What seawater basis is used?
The current reference basis is 42,000–45,000 mg/L feed TDS, 40% nominal recovery and a 500 mg/L permeate target. These are preliminary design values, not universal guarantees.
04Is energy recovery included?
The reference energy-recovery section is 12.45 m³/h at 58–62 bar. Technology, efficiency and final operating point require project confirmation.
05What does the displayed price include?
The approved net equipment price covers a packed product at CWG warehouse, Braće Radića 132, Mraclin, Croatia (EXW). Transport and site work are quoted separately. Delivery is estimated at 12–18 weeks, subject to confirmation after order.
READY TO CONFIGURE BOX DESAL SWRO 200?
Send the seawater analysis and delivery conditions.
CWG will verify capacity, recovery, membrane projection, pretreatment, utilities, layout and final commercial scope.
